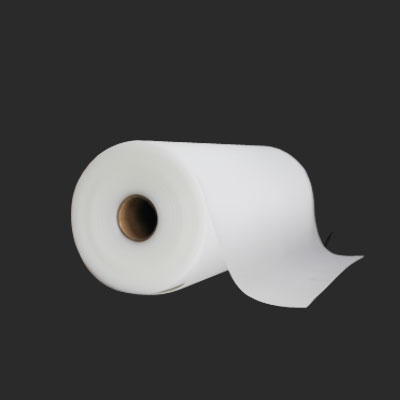

SOLAR EVA FILM | ||||||
Item code | Specification of thickness(mm) | Specification of width (mm) | Grammage (g/sqm) | Length/roll (m) | Package means (mm) | Min order quantity (sqm) |
Z1261 (UV Resistant) / Z1261A (UV Through) |
0.50 | 500-1200 | 420-450 | 100 | - | 2,000 |
0.45 | 360 | 370-400 | 120 | - | 2,000 | |
0.45 | 550 | 370-400 | 120 | 560*290*300 | 2,000 | |
0.45 | 680 | 370-400 | 120 | 690*290*300 | 2,000 | |
0.45 | 810 | 370-400 | 120 | 830*290*300 | 2,000 | |
0.45 | 985 | 370-400 | 120 | 1010*290*300 | 2,000 | |
0.45 | 990 | 370-400 | 120 | 1010*290*300 | 2,000 | |
0.45 | 1000 | 370-400 | 120 | 1010*290*300 | 2,000 | |
0.45 | 1020 | 370-400 | 120 | 1040*290*300 | 2,000 | |
0.45 | 1060 | 370-400 | 120 | 1080*290*300 | 2,000 | |
0.40 | 500-1200 | 320-340 | 150 | - | 3,000 | |
0.35 | 500-1200 | 280-300 | 170 | - | 3,000 | |
0.30 | 500-1200 | 230-250 | 200 | - | 3,000 |
Product Packaging :
1. Each roll is packed with PE film and vacuum packing process, after that put one roll in one carbon box. (Under 500mm width will be packed with 2-3 rolls in one box)
2. The inner package materials are polyethylene bag or protect paper, and the external packages are carton boxes and pallets, and each pallet can be put on 16 to 24 rolls.
3. Production storage: Being stored in a dry and shade place with temperature 0℃~30℃, and humidity ≤ 60%, sunlight direct radiation should be avoided. The product must be not placed nearby heating equipment and the place with dust.
4. Product usage: Before using, check the package intact and untouched. The product should be quickly used once you open it. The other unused part re-sealed by original packaging or similar packaging. The product is guaranteed for 6 months from the production date in the unopened state, you are suggested to use up within 3 months.
Item |
Test method |
Unit |
Fast cure type |
||||
Z1261A |
Z1261 / Z1261P |
Z1261C |
|||||
Density |
ISO1183 |
g/cm³ |
0.95 |
0.95 |
0.95 |
||
content |
TGA |
% |
26-33 |
26-33 |
28-33 |
||
Softening point |
DSC |
℃ |
55 |
55 |
55 |
||
Surface hardness |
GB/T531-1999 |
Shore A |
65 |
65 |
62 |
||
Tensile strenghth (after crosslinking) |
ISO527-3 |
MPa |
20 |
20 |
20 |
||
Elongation (after crosslinking) |
% |
600 |
600 |
600 |
|||
Strenghth of Extension |
MPa |
6 |
6 |
6 |
|||
UV cutoff wavelength |
UV-vis |
Nm |
-- |
360 |
360 |
||
Optical transmission |
GB2410-80 |
% |
91.5 |
91 |
91 |
||
Refractive index |
ISO489 |
-- |
1.480 |
1.482 |
1.482 |
||
(0.45MM; 120℃,3min) |
Q/ZX001-2012 |
MD% |
≤3.0 |
≤3.0 |
≤10.0 |
||
TD% |
≤1.0 |
≤1.0 |
≤3.0 |
||||
(140℃,17min) |
Q/ZX001-2012 |
Gel % |
≥75.0 |
||||
Peeling strength |
With Glass |
Q/ZX001-2012 |
N/cm |
>60 |
|||
With TPT |
N/cm |
>40 |
|||||
(90℃,90%RH, 1500hrs) |
Yellowness index |
Q/ZX001-2012 |
△YI |
<3 |
|||
Peeling strenghth with glass |
N/cm |
>40 |
|||||
(1500hrs) |
Yellowness index |
Q/ZX001-2012 |
△YI |
<3 |
|||
Peeling strenghth with glass |
N/cm |
>40 |
|||||
Volume resistance |
GB/T 1410 |
Ω·cm |
≥1*1015 |
||||
Dielectric strength |
GB/T1408.1 |
Kv/mm |
>28 |
||||
PID resistance test |
IEC61730-2:2004 |
Power loss % |
<5% |
Operating parameters Items | Ultra fast cure, High transmission, PID free | ||||
Z1261 / Z1261A /Z1261P | |||||
Laminating curing parameters | Heating panel (℃) | 135±2 | 140±2 | 145±2 | 150±2 |
Pump down time (min) | 5±1 | 5±1 | 4±1 | 4±1 | |
Holding time(min) | 15±2 | 12±1 | 10±1 | 7±1 |
Note: Laminating process conditions shall be selected and confirmed according to the performance of laminating machine.
